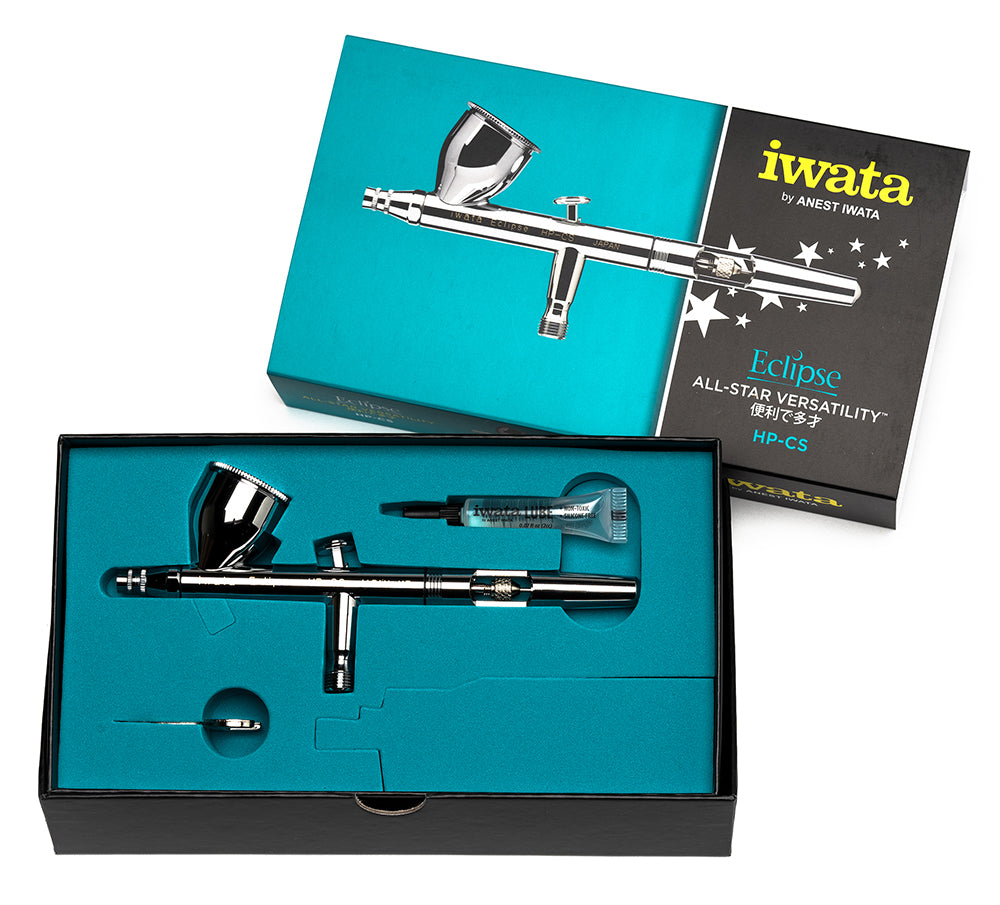

Iwata Eclipse HP-CS Gravity Feed Airbrush

Versatile control from fine detail to broad coverage

The Iwata Eclipse HP-CS Airbrush is a popular all-round gravity feed model for miniatures, scale models, illustration, custom art and craft work. Its dual action trigger independently controls air and paint, helping painters move from fine lines to broader coverage without changing tools.

Iwata's E3 head system uses a compression-fit nozzle and is designed for reliable atomisation across a wider range of paint viscosities. The seven-millilitre cup provides useful capacity for basecoats and larger areas, yet the airbrush remains comfortable and responsive for controlled detail work. A cutaway handle also provides quick access when clearing the paint passage or checking needle movement.

Key features

• Fine-to-wide spray scale
• Gravity feed with 7 ml fluid cup
• Dual action trigger control
• E3 head system with compression-fit nozzle
• Optimal working pressure of 25 to 35 psi
• Solvent-resistant needle packing and spring-steel needle

Ideal for

• Miniatures and scale models
• Basecoats, gradients and controlled detail
• Illustration, crafts and custom artwork
• Painters wanting one adaptable airbrush

Setup and care

Use properly thinned airbrush paint and adjust pressure to suit the medium. Flush the cup between colours and clean the needle and nozzle after use without forcing the delicate parts. The I6172 E3 needle and I6042 E3 nozzle listed in this catalogue are compatible replacement parts for the HP-CS.
